High Strength
Corded strap is very strong when applied with steel buckles, this strap can be re-tensioned after application.
Lightweight
Lighter than steel, Corded Polyester strapping can maintain tension and integrity of the load.
Minimise Damage
Leaving no rust deposit on the load Corded Polyester Strapping does not cut into products.
Low Cost
Low cost, manual strapping and securement solution for medium and heavy weights, suitable for pallets, loads, flatracks and unitized cargo
Corded Polyester Strapping
As strong as Steel strap, corded polyester strapping is suitable for medium and heavy loads. This simple to apply strapping is a great solution for pallet strapping and load securement. Corded Strap can be closed with a frame or a buckle. Closures, hooks, tensioners and dispensers are available in order to secure all loads, no matter the shape, and to prevent your goods from being damaged during transport.
Features and Benefits
- Natural Shock Absorption
With a natural elasticity, this means that the strap moves with the load. E.g. when applied to wood and the wood expands or shrinks, the polyester corded strap adjusts itself and holds its original shape for 70%. - Easy to Use
Corded strap can be easily applied with buckles and can be re-tensioned if necessary. - UV Resistance
Polyester fibre has a relatively good resistance to daylight exposure. In this regard its properties are far better than for example polyamide and polypropylene (This property declines over long term exposure in sunlight). - Adaptable to Changing Conditions
Strapping which is insensitive to temperature differences and moisture.
Composite
Woven
Bale Press
Hotmelt
Technical Specifications
Composite
The polyester is co-extruded with plastic. The composite shows excellent properties in all its applications where a high performance is required and specific attention is given to avoid damage by rubbing. Composite strapping is also waterproof and recommended for temperatures up to 80°C.
| Type | Width (mm) | Breaking Strength (DaN) | Coil Length (M) | Coils per carton | Coil Weight (Kg) | Coils per Pallet |
|---|---|---|---|---|---|---|
| 50 SCCL | 16 | 300 | 1200 | 2 | 12.1 | 90 |
| 40 SCC | 13 | 330 | 1100 | 2 | 10.6 | 90 |
| 50 SCC | 16 | 450 | 850 | 2 | 10.9 | 90 |
| 55 SCC | 16 | 575 | 750 | 2 | 12.2 | 90 |
| 60 SCC | 19 | 500 | 600 | 2 | 10.1 | 90 |
| 65 SCC | 19 | 600 | 650 | 2 | 12.1 | 90 |
| 85 SCC Flex | 25 | 1050 | 500 | 2 | 11.5 | 90 |
| 86 SCC | 25 | 1000 | 500 | 1 | 15.5 | 36 |
| 105 TCC Flex | 34 | 1500 | 400 | 1 | 16.5 | 36 |

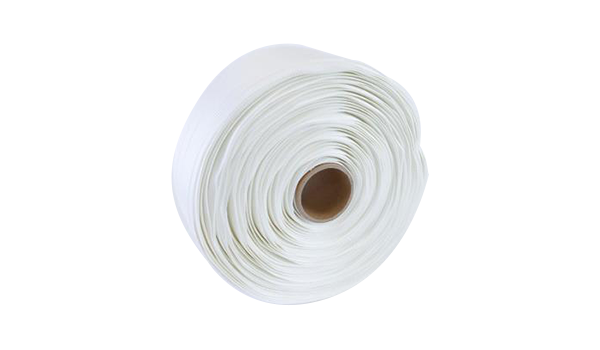

Woven
Woven strap has been developed for strapping, load securing and tie-down, in short for keeping it all together in packaging, transport, do it yourself and leisure. It is a polyester strap with a high tensile strength, resistance and breaking energy.
| Type | Width (mm) | Breaking Strength (DaN) | Coil Length (M) | Coils per carton | Coil Weight (Kg) | Coils per Pallet |
|---|---|---|---|---|---|---|
| 40 AT | 13 | 400 | 1100 | 2 | 9 | 96 |
| 50 AT | 16 | 475 | 850 | 2 | 7.5 | 96 |
| 60 AT | 16 | 575 | 600 | 2 | 6.5 | 96 |
| 85 AT | 25 | 1050 | 500 | 2 | 11 | 60 |
| 105 AT | 32 | 1400 | 400 | 2 | 10.5 | 60 |
| 150 AT | 35 | 2500 | 200 | 2 | 8.5 | 60 |
| 105 ATR | 34 | 1800 | 350 | 2 | 13 | 60 |
Bale Press
Used extensively for bundling bales of compressed waste. Here polyester offers the ideal solution due to its high tensile strengths and its simple handling.
| Type | Width (mm) | Breaking Strength (DaN) | Coil Length (M) |
|---|---|---|---|
| 30 P | 9 | 275 | 140 |
| 40 P | 13 | 375 | 140 |
| 50 P | 16 | 450 | 140 |
| 60 P | 19 | 725 | 140 |
Hotmelt
Is bonded together with hotmelt glue that keeps the yarns better together. This type of strapping is mainly used for outdoor applications (like the wood industry) and also for some ways of load securing. Hotmelt strapping is waterproof and recommended for temperatures up to 60°C.
| Type | Width (mm) | Breaking Strength (DaN) | Coil Length (M) | Coils per carton | Coil Weight (Kg) | Coils per Pallet |
|---|---|---|---|---|---|---|
| 50 SCML | 16 | 425 | 1200 | 2 | 8 | 96 |
| 30 SCM | 9 | 275 | 1500 | 2 | 8 | 96 |
| 40 SCM | 13 | 400 | 1100 | 2 | 14.5 | 108 |
| 50 SCM | 16 | 475 | 850 | 2 | 14 | 108 |
| 60 SCM | 19 | 575 | 600 | 2 | 13 | 108 |
| 55 SCM | 16 | 625 | 600 | 2 | 14 | 108 |
| 65 SCM | 19 | 750 | 500 | 2 | 13 | 108 |
| 85 SCM | 25 | 950 | 500 | 2 | 16.5 | 108 |
| 105 SCM | 35 | 1300 | 150 | 7 | 24 | 252 |
| 65 TCM | 19 | 950 | 400 | 2 | 13 | 108 |
| 85 TCM | 25 | 1300 | 400 | 2 | 17 | 108 |
| 105 TCM | 38 | 2000 | 100 | 7 | 24 | 252 |
Corded Polyester Strapping Accessories
We additionally offer a complete range of accessories for unique use with different strapping needs, buckles and seals which mean the strapping can be re-tensioned after application as well as a wide range of tensioners and dispensers to create an easy and fast operation of strapping application. To find out more about the full range of accessories available, make sure to get in touch.
Buckles and Seals
Tensioners
Dispensers
