MIP™ hand tools for steel strapping. Including sealers, tensioners and combination tools for steel strap.
MIP 3100 Tensioner

MIP Steel Strapping Sealers

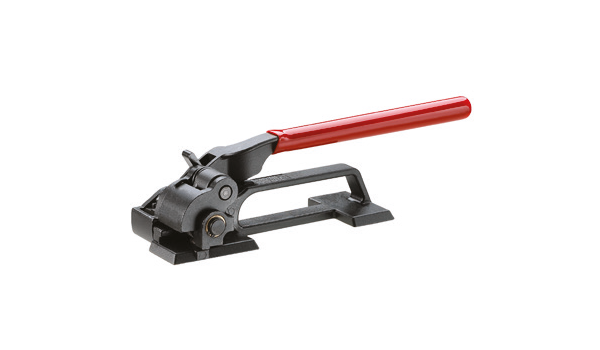

MIP 1300 Tensioner

MIP Steel Strapping Tensioner

MIP Combination Tools

MIP Steel Strapping Combination Tool

MIP - Steel Strapping Hand Tools

Presenting MIP a Signode Brand, steel strapping hand tools. Solutions including sealers for steel strap with front-action and side-action models, tensioners with feedwheel, push-type, windlass and rack & pinion application types for steel strapping as well as sealless manual combination tools.

Solution Group

  • Products
  • Services
  • Integration
  • Automation
  • pack
  • bundle
  • unitize
  • warehouse
  • transport

MIP Sealers for Steel Strap

Model / Part NumberStrap SizeSeal NameJoint TypeTool Weight
WidthGaugelbsKg
inchmminchmm
Manual Front-Action Sealers
MIP-1100-121/212.70.015 - 0.0230.38 - 0.58S12S02Double-notch31.4
MIP-1120-121/212.70.015 - 0.0230.38 - 0.58S12P02Single-reverse notch31.4
MIP-1152-121/212.70.023 - 0.0310.58 - 0.78S12S02Double-notch51.8
MIP-1100-585/815.90.015 - 0.0230.38 - 0.58S58S02Double-notch31.4
MIP-1120-585/815.90.015 - 0.023
0.38 - 0.58S58P02Single-reverse notch31.4
MIP-1152-585/815.90.023 - 0.0310.58 - 0.79S58S02Double-notch51.8
MIP-1100-343/419.00.015 - 0.0230.38 - 0.58S34S02Double-notch31.3
MIP-1120-343/419.00.015 - 0.0230.38 - 0.58S34P02Single-reverse-notch31.3
MIP-1152-343/419.00.023 - 0.0310.58 - 0.79S34S02Double-notch51.8
Manual Side-Action Sealers
MIP-3000-343/419.00.025 - 0.0350.64 - 0.89S34S03, S34P03Single-notch9.04.1
MIP-3000-1141-1/431.80.025 - 0.035
0.64 - 0.89
S114P03, S114P04Single-notch9.04.1
MIP-3100-343/419.0
0.025 - 0.035
0.64 - 0.89		S34S03, S34P03Double-reverse notch11.05.0
MIP-3100-1141-1/431.80.025 - 0.035
0.64 - 0.89
S11403, S11P04Double-reverse notch11.05.0
MIP-1100

MIP-1100 Series

MIP-1120

MIP-1120 Series

MIP-1152

MIP-1152 Series

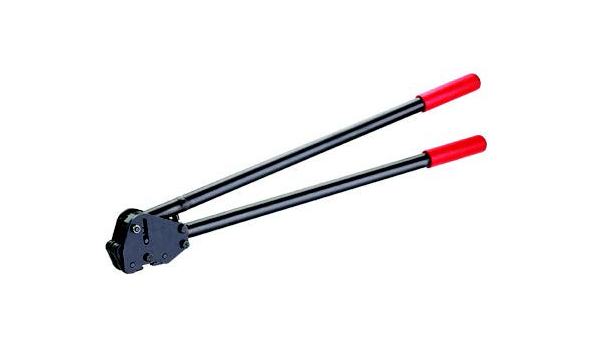

MIP-3100

MIP-3100 Series

MIP Tensioners for Steel Strap

Model / Part Number
Strap SizeStrap TypeTension LevelTool Weight
WidthGaugelbsKg
inchmminchmm
Manual Feedwheel Tensioners
MIP-12003/8 - 3/49.5 - 19.0
0.015 - 0.0230.38 - 0.58Regular duty, high tensile
Low Tension41.8
MIP-13003/8 - 3/49.5 - 19.0
0.015 - 0.0250.38 - 0.64Regular duty, high tensile
Medium Tension52.3
MIP-14003/4 - 1-1/49.5 - 19.00.025 - 0.035 0.64 - 0.89Regular duty, high tensile
High Tension83.2
Manual Push-Type Feedwheel Tensioners
MIP-1610*3/8 - 3/49.5 - 19.00.015 - 0.0230.38 - 0.58Regular duty, high tensile
Medium Tension41.8
MIP-1620*5/8 - 1-1/415.9 - 31.80.023 - 0.0350.58 - 0.89Regular duty, high tensile
High Tension83.2
Manual Windlass Tensioners
MIP-19001/4 - 3/46.4 - 19.00.015 - 0.0310.38 - 0.79Regular duty, high tensile
Medium Tension41.8
Manual Push-Type Rack & Pinion Tensioners
MIP-18003/8 - 3/49.5 - 19.00.015 - 0.0230.38 - 0.58Regular duty, high tensile
Medium Tension21.3
MIP-18605/8 - 1 1/416.0 - 31.80.023 - 0.0350.58 - 0.89Regular duty, high tensileHigh Tension52.3

*Use with push-seals only

MIP-1400

Feedwheel Tensioner

MIP-1610

Push-Type Feedwheel Tensioner

MIP-1900

Windlass Tensioner

MIP-1860

Push-Type Rack & Pinion Tensioner

MIP Combination Tools for Steel Strap

Model / Part Number
Strap SizeStrap TypeTension LevelTool Weight
WidthGaugelbsKg
inchmminchmm
Manual Sealless Combination Tools - Three-Key Joint
MIP-4900-121/212.70.015 - 0.0250.38 - 0.64Regular duty, high tensileHigh Tension8.53.8
MIP-4900-585/815.90.015 - 0.025
0.38 - 0.64
Regular duty, high tensile
High Tension
8.53.8
MIP-4900-343/419.00.015 - 0.025
0.38 - 0.64
Regular duty, high tensile
High Tension
8.53.8

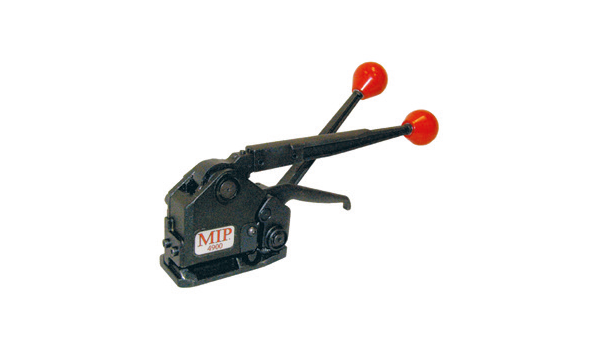

MIP-4900 Combination Tool

Additional Solutions - MIP Steel Strap Cutters

Also available are MIP Economy and Extra Heavy Duty strap cutters.

ModelPart NumberStrap SizeTool Weight
WidthGauge
inchmminchmmlbskg
EconomyMIP-21003/8 - 3/49.0 - 19.00.015 - 0.0310.38 - 0.7930.45
Extra Heavy DutyMIP-23003/4 - 219.0 - 50.00.025 - 0.0500.64 - 1.383.6
MIP Economy Sealer
MIP Heavy Duty
