Pallet Conveyors

Pallet Conveying and Handling Systems

We provide a wide range of systems for pallet conveying, our systems are designed, built, installed, and maintained one of the largest conveyor installation bases worldwide.

Providing highly customizable solutions according to your facility our products are constructed with robust material to ensure that they provide years of reliable and hassle-free operation.

Our material handling product lines consistently allow customers to increase throughput, minimize line downtime and maximize efficiency.

Features and Benefits

• Providing smart pallet conveyors with HMI control systems
• Gravity palletizers and motor based palletizers are available custom to your needs.
• Reliably transport bulk goods between processes during bottling, packaging, assembly, and a wide range of other manufacturing tasks.

Roller Conveyor

A series of cylindrical rollers mounted in frames that allow items to roll along a track. Used in assembly lines and shipping facilities with a max. load capacity of 1,500 Kg.

The conveyor is electrically powered by an AC motor controlled by a driver to adjust the speed and acceleration to make the movement of the pallet as fluent as possible.

If the RC is going to be serving pallets to a machine that moves (like a cart or lift) will mount a different motor that wears a brake. The detection of the pallet is made by photo eyes. We can provide different kind of accessories for the RC as machine guards, pallet guides or forklift truck stops.

Chain Conveyor

Designed to move pallets along a fixed path, used for heavy-duty items. A durable system which uses a continuous loop of a chain to transport the goods.

The system is electrically powered by an AC motor controlled by a driver to adjust the speed and acceleration to make the movement of the pallet as fluent as possible.

Turntable Conveyor

Utilizing a rotating platform to change the direction of pallets on the conveyor. Products will be redirected 90°, 180°, or 360°, allowing products to move seamlessly in multiple directions. Brilliant for use in production lines where products need to be diverted for further processing.

The model is electrically powered by an AC motor controlled by a driver to adjust the speed and acceleration to make the movement as smooth as possible. The position of the machine is controlled by four inductive sensors.

To prevent undesirable collisions, the machine has an internal mechanic stop that avoid to over pass the working angle. The conveyor over the rotating ring can be configured as needed, providing a versatile solution.

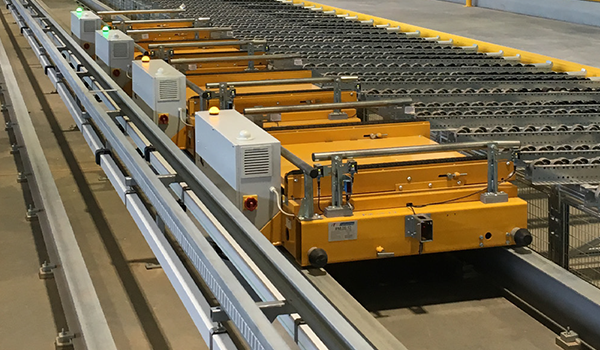

Pallet Mover

Used to transport loads from one part of the installation to another one far from the first or with several intermediate stations that could take or let a pallet to the line without the need of long lines of machines.

To be used when the need is to connect one or more infeed points with one or more out lines (gravity lanes, picking zones, load docks).

It is also possible to integrate with a lift and turn conveyor, combining vertical and rotational movement to move pallets from one line to another. The lift mechanism will raise products onto a turntable to adjust the pallet for an alternate angle. Often used in collaboration with strapping systems to secure pallets for transportation.

Over the main frame it’s possible to mount different conveyors, as needed, roller conveyors, chain conveyors, single or dual mode (to transport two pallets at a time). Electrically powered by an AC motor controlled by a driver to adjust the speed and acceleration to make the movement as fluent as possible.

Transfer Conveyor

Designed to move items from one conveyor to another, this conveyor will facilitate smooth transitions between different stages of an automated system. These systems are used in sorting systems, packaging lines, or manufacturing processes where items need to move between different levels, departments, or equipment.

The machine is equipped with limit switches to ensure the position of the CC frame first to pick or let the pallet, and several photo eyes to detect the pallet.
