Improved Line Productivity
Faster strapping, can be completed by only one operator.
Simplify Your Workplace
Easy to strap loads with reduced work effort, removing the need to cross conveyors.
Low Service Needs
Straightforward with few wearing parts, providing low cost of ownership and minimal downtime.
Ease of Operation
Simple to set up, the PSF is easy to integrate into production line.
PSF Power Strap Feeder
Signode's pneumatic power strap feeder (PSF) can bridge the gap between manual hand strapping and fully automatic power strapping machines. The PSF is a flexible solution with many options available for pallet and pallet less load strapping.
The PSF is used with Tenax® PET, Dylastic® PP or Steel strapping, all of which can be provided by Signode. Built with a heavy-duty frame to suit your plant, the unit has a strap chute with full length moveable strap chutes for high-speed strap feeding. The PSF enables one operator to strap loads and apply appropriate edge protection and/or bottom battens to the load if required. Find out more about the strapping range by browsing the related products below.
Features and Benefits
- Effective Load Strapping
Due to high speed strap feeding this makes strapping more efficient than by hand. - Ease of use
Simple to use enabling operators to apply strap without walking across conveyors, furthermore less bending and physical exertion during packaging process. - Integration to existing system
Simple to use and fit into existing or new roller conveyor / chain packaging lines or standalone application. - Flexible Design
Designed to suit the application.
Technical Specifications
| Specification | PSF |
|---|---|
| Package Width Range | 500 to 2500 mm |
| Package Height Range | 100 to 2000 mm |
| Works with Strap Types | Tenax PET, Dylastic PP and Steel Strapping |
| Strap Feed Speed | 2 - 3 m/sec |
The PSF is available for feeding with Circumferential Horizontal (CH) and Eye Horizontal (EH) methods for coil applications.
Diverse Strapping Applications

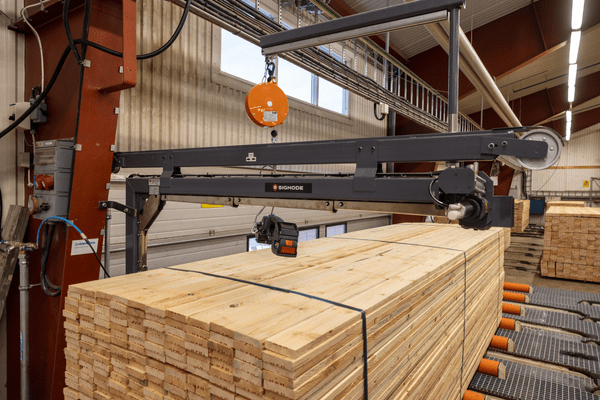

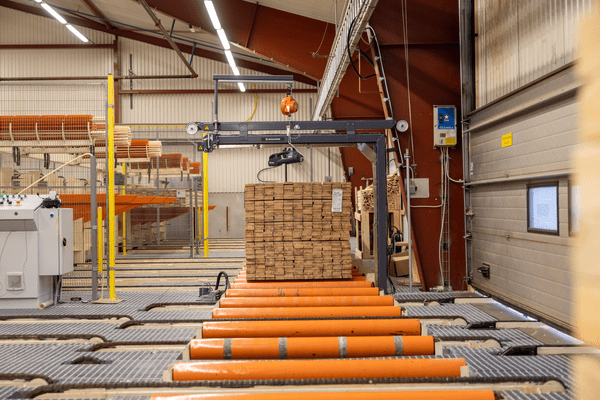

Use the PSF in multiple industries including within the lumber and metals industry below is the power strap feeder for lumber loads and applying horizontal strap to stationary steel coils.
Explore how to use PSF in your industry, reach out to the Signode team.
