Honeycomb is a durable, highstrength packaging material made from custom-engineered kraft paper. It is stronger than corrugated cardboard and less expensive than wood, providing excellent shock resistance.
Honeycomb
Honeycomb protective packaging for a grill

Reduces Material Costs

Highly durable design with lightweight paper properties reduces freight costs

Internationally
Compliant

Made from naturally sanitary materials exempt from ISPM-15 certification

Highly
Sustainable

Made from renewable resources and recycled fiber and is 100% recyclable

Fully
Customizable

Designed and engineered to fit your product’s needs in a variety of sizes and markets

Honeycomb Packaging - Custom Engineered Packaging Solutions

Kraft paper Honeycomb packaging is manufactured using custom-engineered kraft linerboard, a durable high-strength packaging material with cushioning and bracing properties provide resistance to shock and crushing during transit, making it an ideal packaging solution for a variety of applications. Stronger than corrugated cardboard and less expensive than wood, Honeycomb is customizable and provides a cost-effective solution for transportation dunnage, inner and outer product protection as well as the structural foundation for unitized goods. With variable cell sizes and paper combinations along with die-cutting possibilities, Honeycomb paper packaging can be modified to achieve desired strength and configurations to suit any application. In addition, Honeycomb can be treated with specialty finishes and coatings for further customization.

Honeycomb die-cut wine pack

Technical Specifications


Standard Sizes
Thickness
1.27 cm – 10.16 cm (.5 in – 4 in)
Width
10.16 cm – 121.92 cm (4 in – 48 in)
Length
30.48 cm – 365.76 cm (3.54 in and 4.72 in)
Strength
Light and heavy duty cells are available
Pounds per sq. inch5 PSI – 60 PSI
Up to 140 PSI upon request
Cell sizesTo achieve desired strength, a variety of cell sizes and paper combinations can be created by our design solutions team.
Liner gradesLight and heavy duty

*Additional sizes and variations available

Honeycomb Kraft Paper Packaging Options

Honeycomb is made by joining individual bands of kraft paper together into a series of continuous hexagonal cells. In most cases, the cells are faced on both sides with similar materials to create an exceptionally strong product. Signode’s honeycomb protective products are an excellent option for a variety of applications to create a customized, and cost-effective solution. Our honeycomb is manufactured in a variety of shapes, sizes and options that are designed specifically for your product needs.

Reverse Slit Score/Slit Score

Reverse Slit Score Honeycomb is made by cutting through one facing paper and through the core material and then by cutting the opposite facing paper at another location to create a fan-folding effect in the panel. Single Slit Score is produced the same way but leaves the other facing paper intact to create a folding hinge in the panel.

Reverse Slit Score


Cookie-cut

Cookie-cut Honeycomb is made by creating a slit in both facing papers and a portion of the core, leaving the panel held together by the uncut center core. Runners and small inner pieces can be stacked for ease of packaging and handling, allowing them to be separated easily by gently pulling each piece apart as needed, streamlining the pack-out process.


Cookie-cut

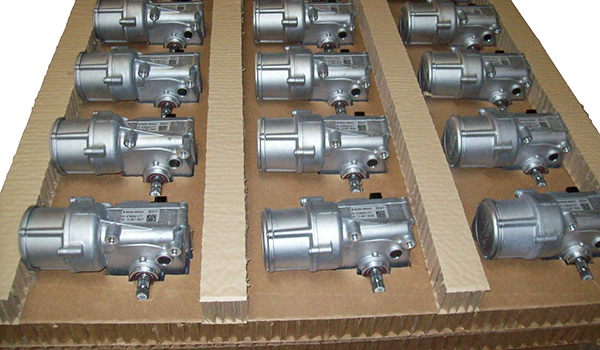

Die-cut

Die-cut Honeycomb is made by producing panels with holes that are cut through the material in the desired  shape or thickness. Die-cut panels can be either glued to a flap panel to create a tray for bulk packing or used to surround an item for inner packing.


die-cut


Pressure Sensitive Adhesive (PSA)

PSA Pressure Sensitive Adhesive Honeycomb is manufactured with a high-tack adhesive that is applied to one side of a honeycomb panel and covered with a release paper. The paper is removed by the end-user so that the panel can be used as a block support in pallets or inner packaging.


PSA


Flat Panels

Honeycomb Flat Panels are made with the hexagonal cells sandwiched between durable paper layers. Facing papers and dimensions can be customized for strength constraints and various applications.


Flat Panels


Pallets

Honeycomb Pallets can hold a significant amount of weight and are a 100% recyclable alternative to typically expensive wood or plastic pallets. Our pallets are custom designed and manufactured using corrugated, honeycomb or a combination of both depending on the size and strength needed.


Pallets
